PGMH is a Bridge-Type Machining Center with innovative features developed by our Research and Development Department. This machine tool can manufacture products that are required in the industry. It is suitable for the worldwide market, especially for shipbuilding, power generation, military industry, heavy machinery manufacturing, railway, machine tools building, textile machinery, printing machinery, mold manufacturing, etc. The machine tool can perform all milling functions required by a milling tool.

Model:
PGMH-4232
Control System:
Siemens 828D

Availability:

Quantity:



Inquire

PGMH is a Bridge-Type Machining Center with innovative features developed by our Research and Development Department. This machine tool can manufacture products that are required in the industry. It is suitable for the worldwide market, especially for shipbuilding, power generation, military industry, heavy machinery manufacturing, railway, machine tools building, textile machinery, printing machinery, mold manufacturing, etc. The machine tool can perform all milling functions required by a milling tool.

Main Structures

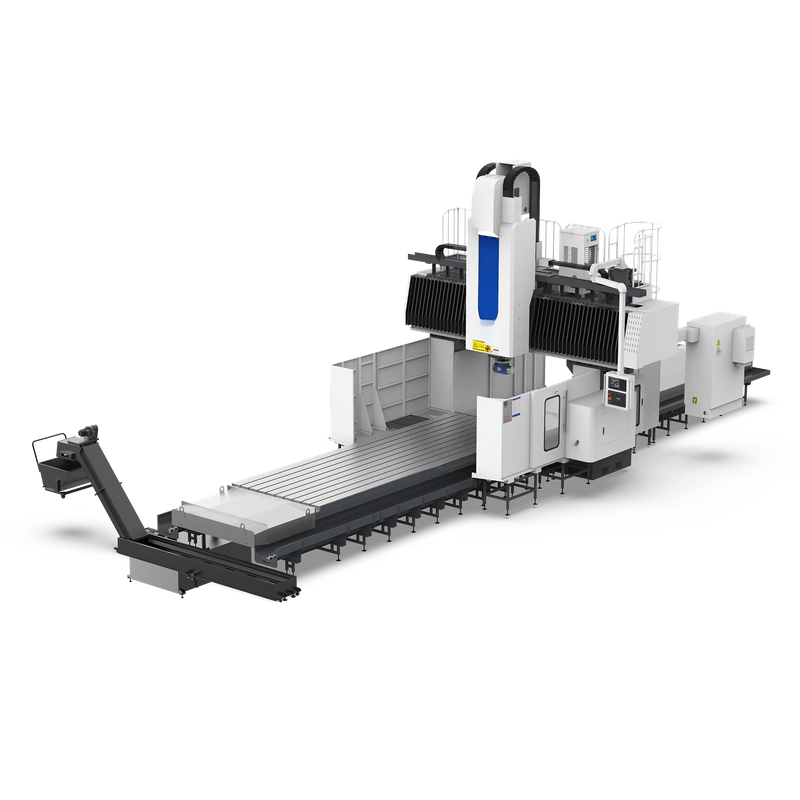

This machine tool features a fixed gantry frame and a moving worktable. It is mainly composed of a worktable, bed, column, crossbeam, slide saddle, ram, hydraulic system, lubrication system, cooling and filtration system, chip removal device, suspended rotary control panel, and electrical control system.

CNC Gantry Machining Center Gantry machining center CNC Gantry Milling Machining Center Gantry-type Machining Center Bridge-Type Machining Center CNC Gantry Machine CNC Gantry-type Machining Center CNC Machine Bridge Milling Machine

Item		Unit	PGMH-4232
Movement	X-Axis	mm	4200
	Y-Axis	mm	3200
	Z-Axis	mm	1000
	Distance from spindle nose to the table maximum height	mm	150 - 1150
	Distance between the two columns	mm	3200
Worktable	Table size (W x L)	mm	2500×4000
	T-slot width/distance	mm	28/200
	Max. table load	T	15
Spindle	Max. speed	RPM	6000
	Main motor power	Kw	17/25.5(S1/S6-40%)
	Output torque	Nm	648/974(S1/S6-40%)
	Taper		MAS 403, BT50
	Retention knob		MAS 403 P50T-1（45°）
Feed rate	Axis		X	Y	Z
	Max. rapid traverse rate	m/min	12	12	10
	Cutting feed rate	m/min	8	8	8
	Positioning accuracy	mm	0.025	0.025	0.015
	Repeatability accuracy	mm	0.015	0.015	0.01
Power	Compressed air supply	Mpa	0.6 ～ 0.7
Lubricating	Ballscrew lubrication		Automatic lubrication device
	Linear guideway lubrication		Automatic lubrication device
Coolant	Cutting cooling system		Soluble oil base mixed with water
	Coolant tank volume	L	800
	Coolant pressure	Mpa	0.4
	Cooling flow	L/min	30
Chip Conveyor	Chip conveyor type		Double screw + chain type + 100 L chip container
Cover	Machine protection		Protection covers the working area
	Linear guideway protection		Telescopic and accordion protection
Machine Size	Height	mm	About 5300
	Width	mm	About 7500
	Overall length	mm	About 12000
	Weight	T	About40
Power parameters	Power	KVA	60
CNC System		Siemens	Siemens 828D
