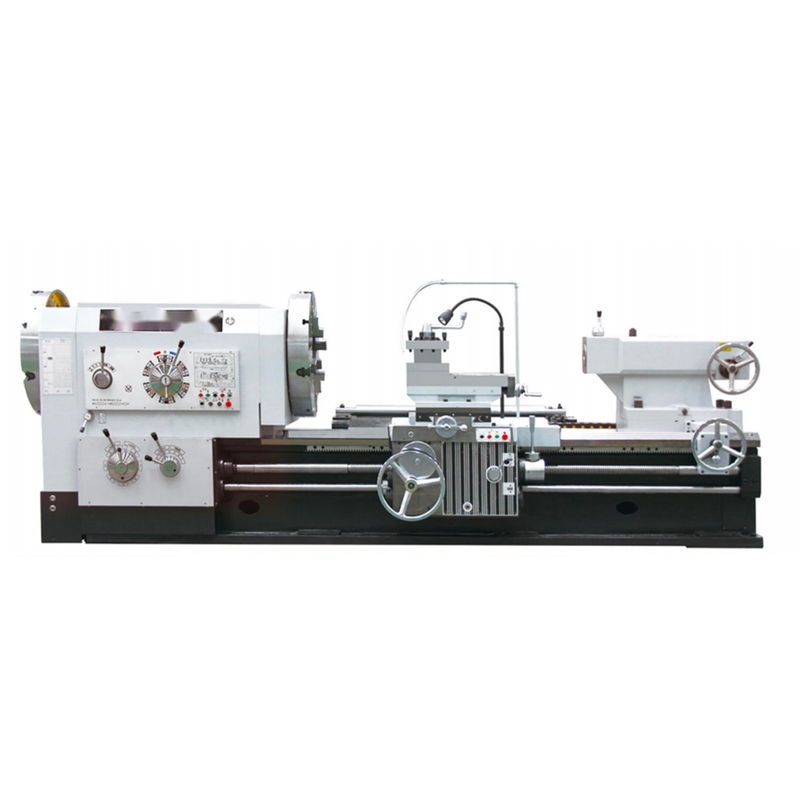

Q1343×1500 Ordinary Pipe Threading Lathe Designed for Machining Pipes Internal And External Pipe Threads

Share to:

This machine tool is specifically designed for machining pipes. It is primarily used to machine internal and external pipe threads. It can also be used as a general-purpose lathe to machine the outer diameter, inner diameter, and end faces of shafts and discs. The lathe is equipped with a taper mechanism, allowing it to machine tapered parts.

Model:
Q1343×1500

Availability:

Quantity:



Inquire

Main uses and functional characteristics of machine tools

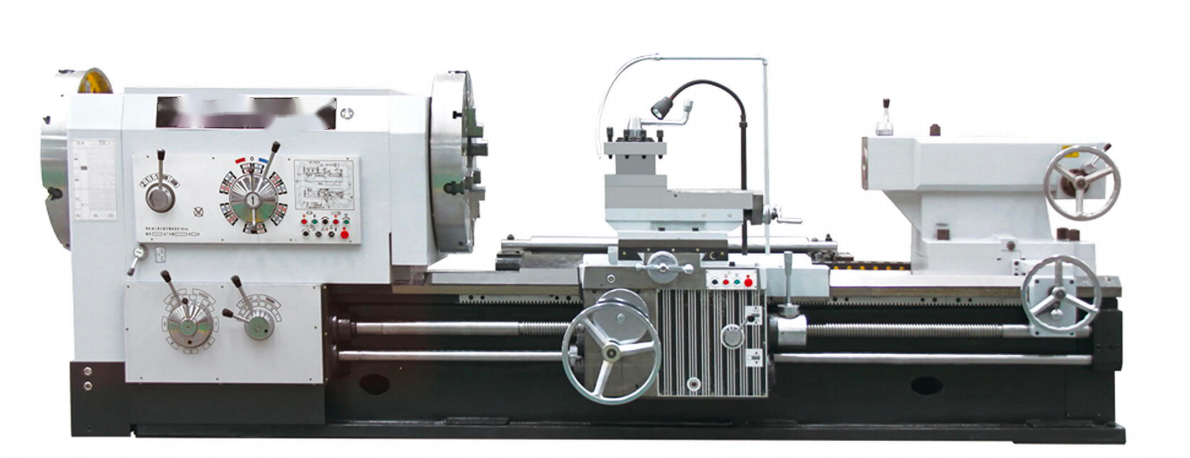

Ordinary Pipe Threading Lathe Designed for Machining Pipes Internal And External Pipe Threads.png

This machine tool is specifically designed for machining pipes. It is primarily used to machine internal and external pipe threads. It can also be used as a general-purpose lathe to machine the outer diameter, inner diameter, and end faces of shafts and discs. The lathe is equipped with a taper mechanism, allowing it to machine tapered parts.

The machine tool features an integrated flat bed, facilitating operation and adjustment, chip removal, and workpiece loading and unloading. The longitudinal and transverse guideways are medium-frequency hardened, improving machine tool response speed and extending service life. The spindle drive system transmits power from the main motor to the spindle via belts and multi-stage gear transmission in the headstock. An electric composite chuck is installed on each side of the spindle; the two chucks clamp sequentially to ensure clamping accuracy when machining long pipes.

The machine tool's design is modern, aesthetically pleasing, practical, and user-friendly.

Item		Unit	Specification
Processing range	Maximum slewing diameter of the bed frame	mm	Φ1000
	Maximum workpiece rotation diameter on the horizontal slide	mm	Φ610
	Maximum workpiece diameter (short disc)	mm	Φ900
	Maximum workpiece length (outer diameter) that can be turned by the machine tool	mm	1250
Spindle	Processing pipe thread diameter range	mm	273-426
	Spindle head type		short cylinder
	Spindle bore	mm	Φ440
	Spindle front bearing	mm	530
	Spindle speed range	r/min	4.9-180 (forward rotation)
	Number of spindle stages		9
	Electric composite chuck diameter	mm	Φ1000
	Maximum torque	N.m	39100
	Main motor power	Kw	22
Tailstock	Tailstock sleeve diameter	mm	Φ160
	Tailstock sleeve moving distance	mm	300
	Tailstock sleeve front end taper hole		Morse 6
	Lateral movement of tailstock	mm	±15
Feed	Number and range of longitudinal feed rates	mm/r	32 types / 0.1–1.5
	Number and range of transverse feed rates	mm/r	32 types / 0.05～0.75
	Number and range of metric thread types to be machined	mm	23 types / 1 to 15
	Number and range of imperial thread types	t/in	22 types / 2-28
	Lead screw pitch	in	1/2″
Stroke	Maximum lateral travel of the lower tool post	mm	520
	Maximum travel of the upper tool post	mm	300
	Maximum longitudinal travel of the saddle	mm	1250
	Maximum rotation angle of the tool post turntable		±60°
	Maximum taper length for continuous machining	mm	1000
	Maximum taper of the workpiece		1:4
	Vertical distance from the spindle center to the tool mounting reference plane	mm	48
	Tool cross-section dimensions	mm	45*45
Cooling system	Coolant head	m	3.3
	Flow	L/min	22
Accuracy (standard specimen)	Precision turning outer diameter accuracy		IT7
	Finish turning outer circle surface roughness Ra value	μm	Ra3.2
	Roundness of precision-machined outer diameter	mm	≤0.015
	Diameter consistency of finishing outer circle	mm	0.04/300
	Finishing end face flatness	mm/mm	0.025/Φ300
Weight and appearance	Appearance of the main body of the device		Refer to European color card RAL 7035
	Equipment base		Refer to European color card RAL 7021
	Total weight of machine tool	kg	13000
	Overall dimensions (length x width x height)	mm	5000×2100×1700
